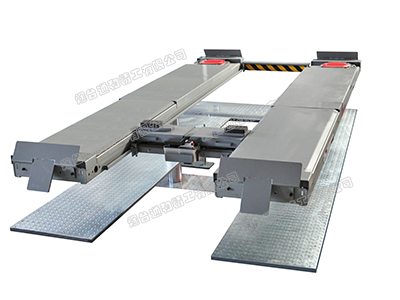

Inground car lift L6800A

Technical Parameters

Lifting capacity: 5000kg

Max. Lifting height: 1700mm

Lift twice(the small car’s lifting height):280mm

Entire Lifting (Dropping)Time: 40-60sec

Load sharing: max. 6:24in or against drive-on direction

Supply voltage: AC220/380V/50Hz; AC230/400V/50Hz

The pressure of the air source: 0.6-0.8MPa

Main unit length: 1700mm

Main unit width: 415mm

Main unit height: 2514mm

Support Arm Length ：4200mm

Support Arm Width：614mm

Post Diameter：195mm

Post thickness：13mm

Sound level (measured at control console): ≤75 dBA

N.W.：2000 kg
