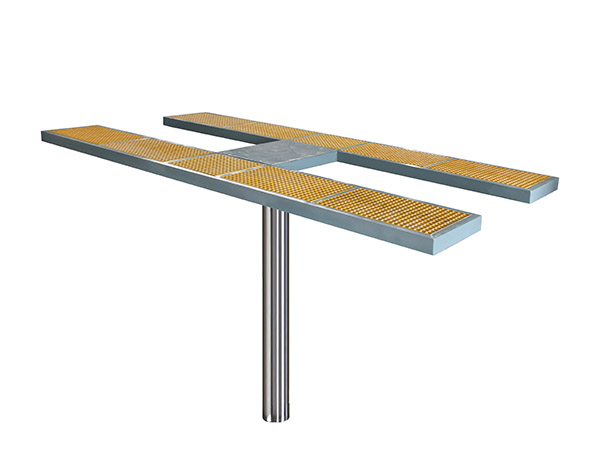

Inground car lift L2800F-2

Technical Parameters:

Lifting capacity：3500kg

Max. Lifting height：1850mm

Raising/Lowering Time: 40/60sec

Load sharing: max. 6:4 in or against drive-on direction

Supply voltage：AC380V/220V 50 Hz

Power：2.2 kW

The pressure of the air source：0.6-0.8MPa

Main unit length：475mm

Main unit height：2514mm

Support Arm Length：4016mm

Support Arm Width：640mm

Post Diameter：195mm

Post thickness：13mm

Sound level (measured at control console): ≤75 dBA

oil tank capacity :8L

N.W.：926kg
