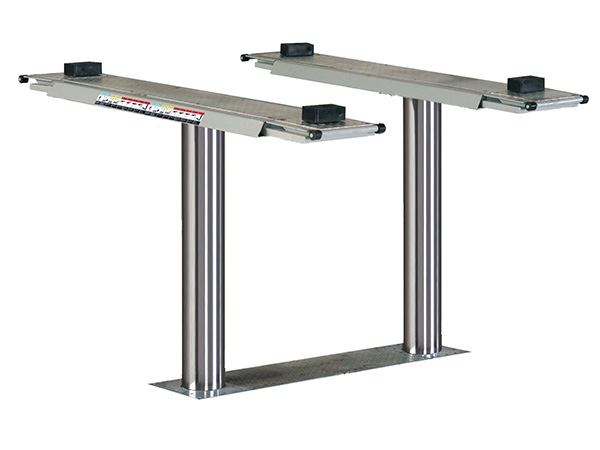

Inground car lift L4800E

Technical Parameters:

Lifting capacity: 3500kg

Max. Lifting height: 1850mm

Entire Lifting (Dropping)Time: 40-60sec

Load sharing: max. 6:4 in or against drive-on direction

Supply voltage: AC380V50Hz

Power: 3 Kw

The pressure of the air source: 0.6-0.8MPa

Main unit length: 1700mm

Main unit width: 415mm

Main unit height: 2514mm

Support Arm Length

Support Arm Width

Post Diameter：140mm

Post thickness：15mm

oil tank capacity：12L

Sound level (measured at control console): ≤75 dBA

N.W.：1280kg
